UNITILE CALCIUM SULPHATE PANEL

UNITILE CALCIUM SULPHATE PANEL

Data Center Accessories Unitile
Data Center Accessories Unitile
Data Center Accessories Unitile

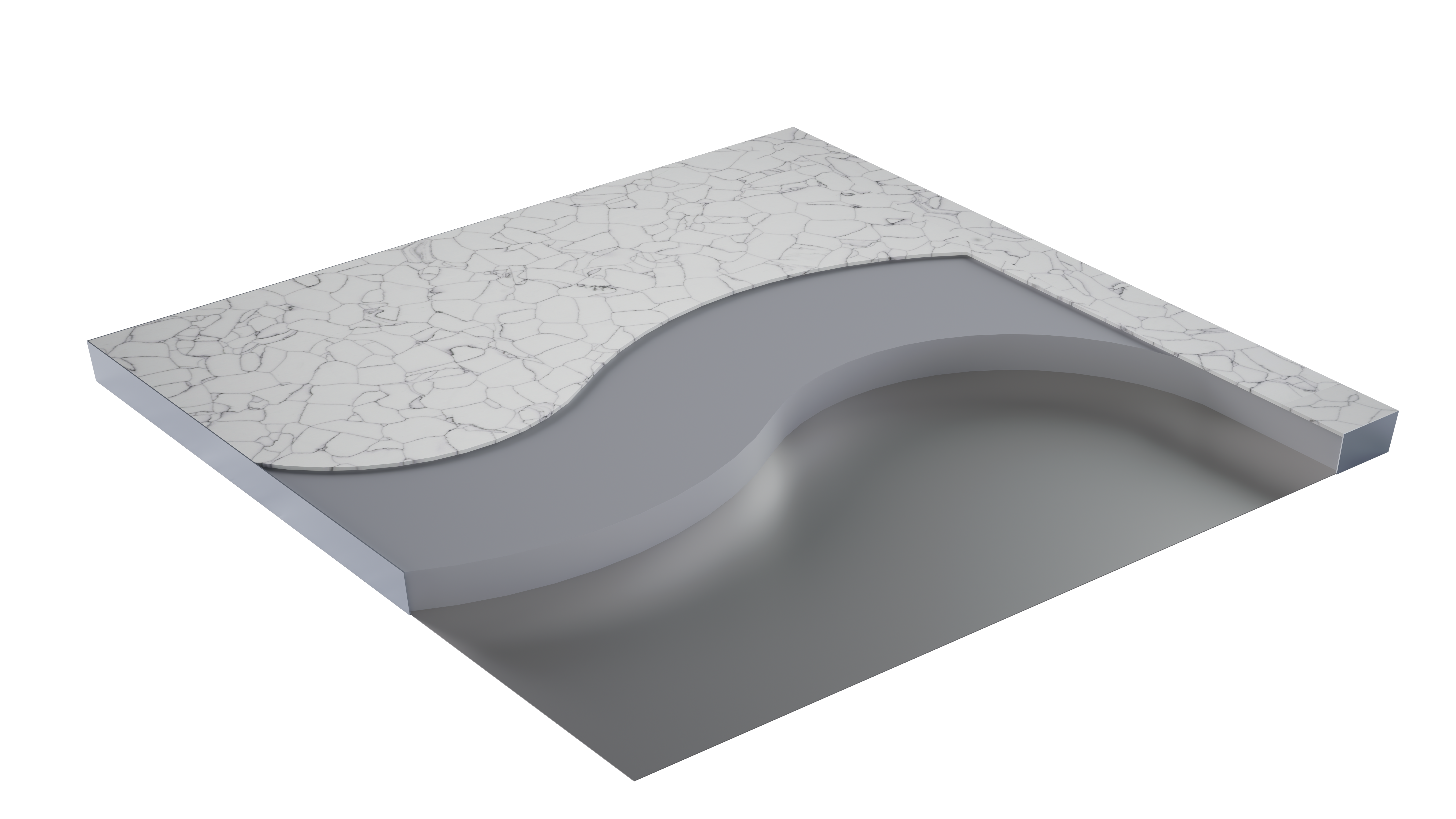

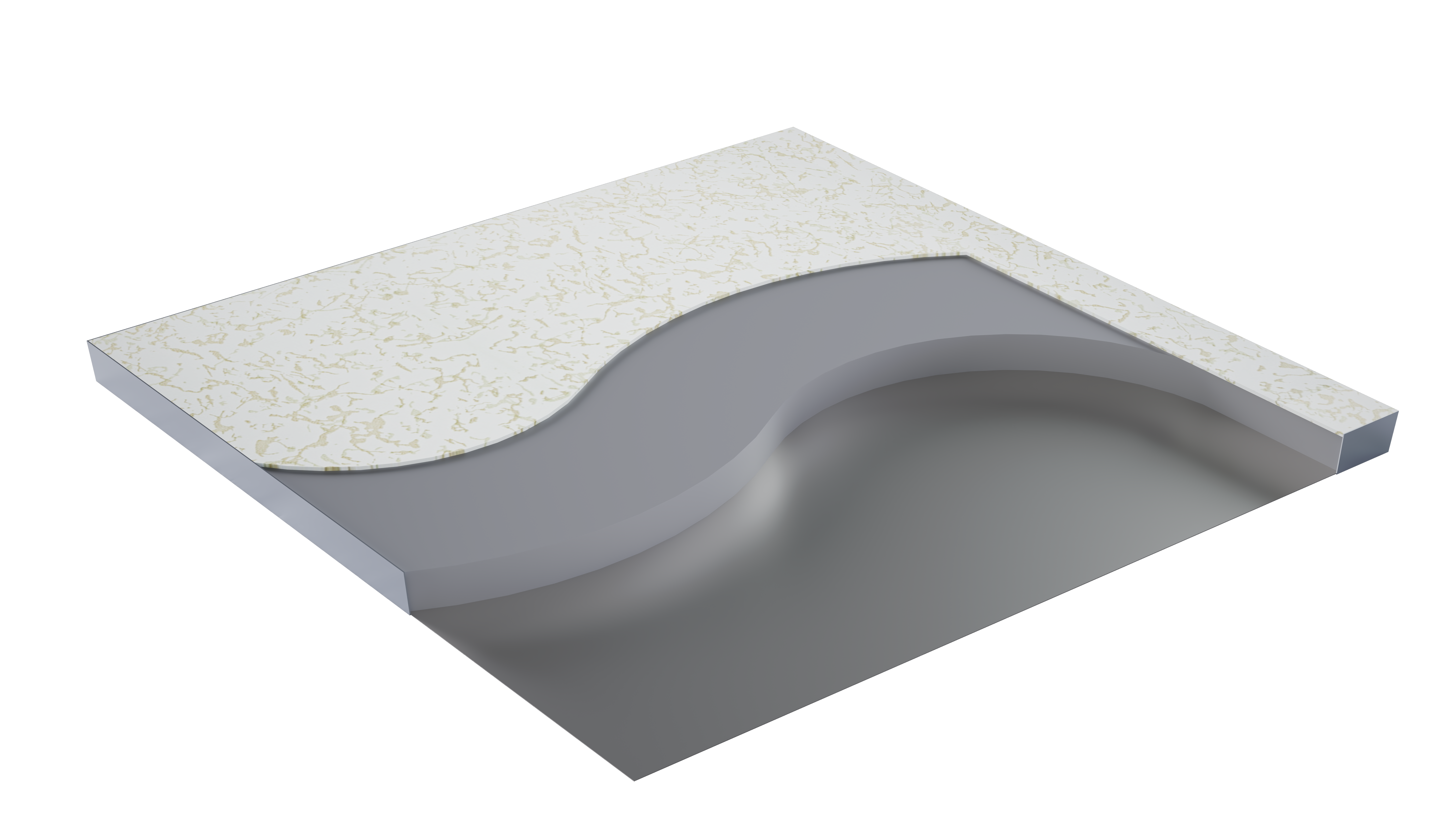

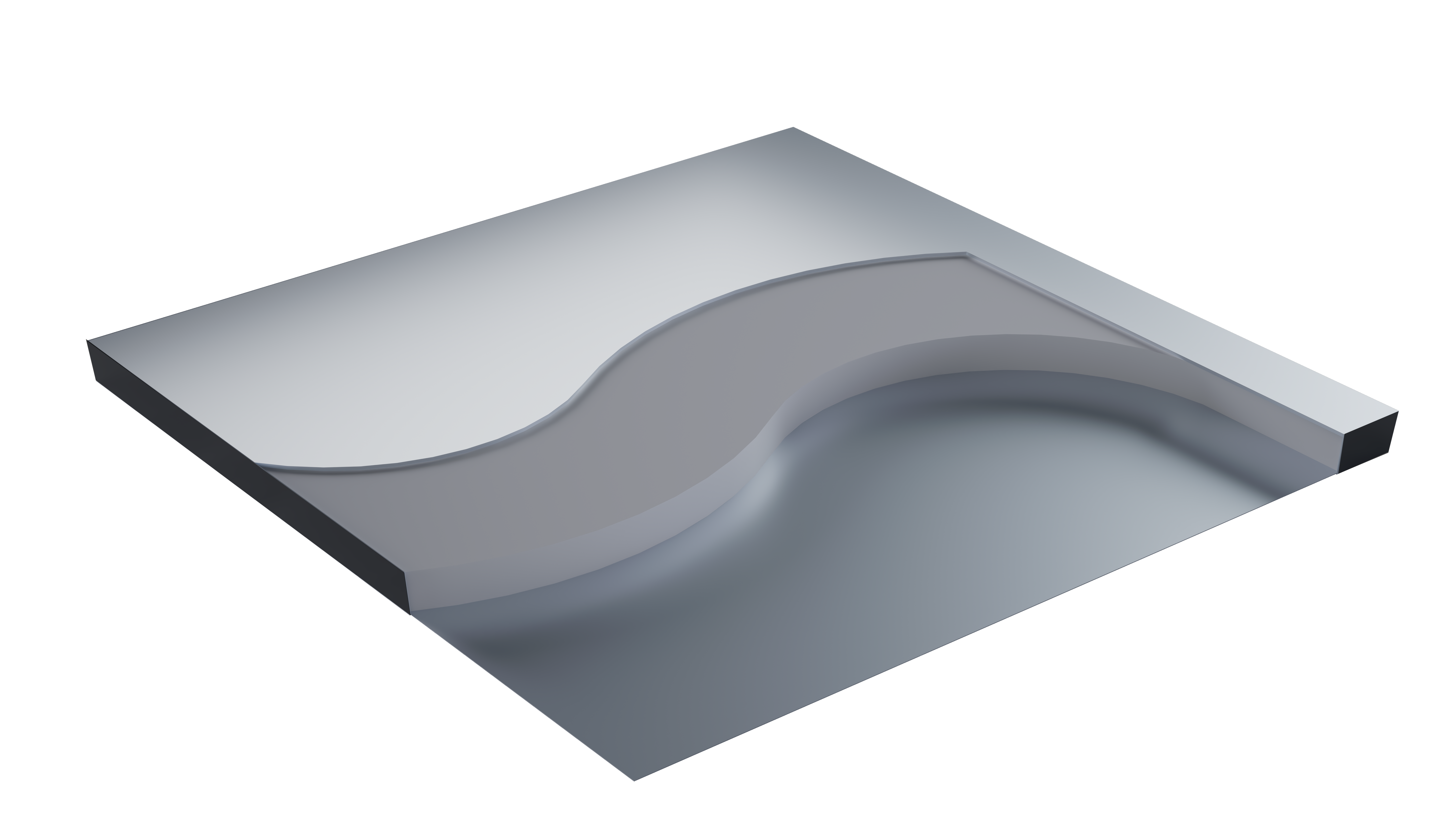

The Unitile Calcium Sulphate Panel is made from calcium sulphate core imported from Knauf Germany having a very high density of 1500 Kgs / mtr3 of Natural gypsum. The base & top surface of the core is factory bonded using an appropriate combination of surface finishes (such as Aluminum, Galvanized sheet, High Pressure Laminate, Vinyl, Vitrified, Marble). The edges of the panel are protected with a PVC edge band.

DIMENSIONS: 600 mm x 600 mm

PANEL THICKNESS: 30 mm | 34 mm

TOP: Galvanized Iron Sheet / High-Pressure Laminate / Vinyl / Vitrified / Marble / Natural stone

BOTTOM: Galvanized Iron Sheet / Aluminium foil 600 mm x 600 mm

CORE: Natural gypsum of high density over 1500kgs/ cubic metre

APPLICATION: Data Center, Control Room, Casino, Co-working, Education.

features

Data Center Accessories Unitile

Excellent acoustic properties and Dissipates electrical charges

Data Center Accessories Unitile

90-97% recyclable panels

Data Center Accessories Unitile

High strength to weight performance

Data Center Accessories Unitile

Excellent fire resistance properties tested as per Class O and Class 1 standards

Data Center Accessories Unitile

Unique In-built stringer design

Data Center Accessories Unitile

Precision in floor levels and positive alignment with the understructure

system selection guide

System Selection Guide
  • Structural Performance as per BSEN 12825
  • Classification
  • Class A
  • Class B
  • Class C
  • Deflection
  • 2.5 mm
  • 3.0 mm
  • 4.0 mm
  • 30 mm
  • Concentrated Load kgs (KN)
  • 700 / 6.86
  • 800 / 7.84
  • 900 / 8.82
  • 34 mm
  • Concentrated Load kgs (KN)
  • 740 / 7.25
  • 830 / 8.13
  • 970 / 9.50
*Contact us for detailed specifiations of design.
System Selection Guide 2
  • Structural Performance as per BSEN 12825
  • Ultimate Concentrated Load
  • Uniformly Distributed Load Kgs / Sq mtr
  • Pedestal Axial Load Test
  • Technical Specification Doc
  • 30 mm
  • 1200 / 11.76
  • 2900 Kgs / Sq. mtr.
  • 22 KN (2245 kgs) Axial Load per pedestal
  • Download
  • 34 mm
  • 1650 / 16.17
  • 3000 Kgs / Sq. mtr.
  • 22 KN (2245 kgs) Axial Load per pedestal
  • Download
* Contact us for detailed specifiations of the product design.

    types of understructure support system

  • GRAVITY LAY

    GRAVITY LAY

    Substructure in Galvanized Steel Model: Free Standing Adjustment mm: + / -25

    • FINISHED FLOOR HEIGHT:
    • Minimum: 150 mm
      Maximum: 2000 mm
  • ESRG

    ESRG

    Substructure in Galvanized Steel with support & stringers for substructure height of over 300mm Model: ESRG Adjustment mm: + / -25

    • FINISHED FLOOR HEIGHT:
    • Minimum: 150 mm
      Maximum: 2000 mm
