U-FLEX STANDARD AIRFLOW GRILLS

U-FLEX STANDARD AIRFLOW GRILLS

Data Center Accessories Unitile
Data Center Accessories Unitile

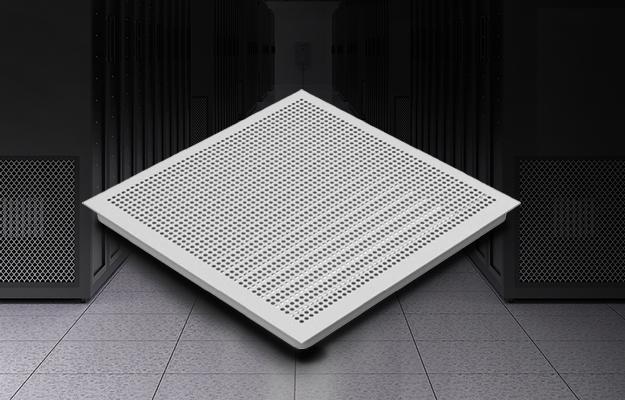

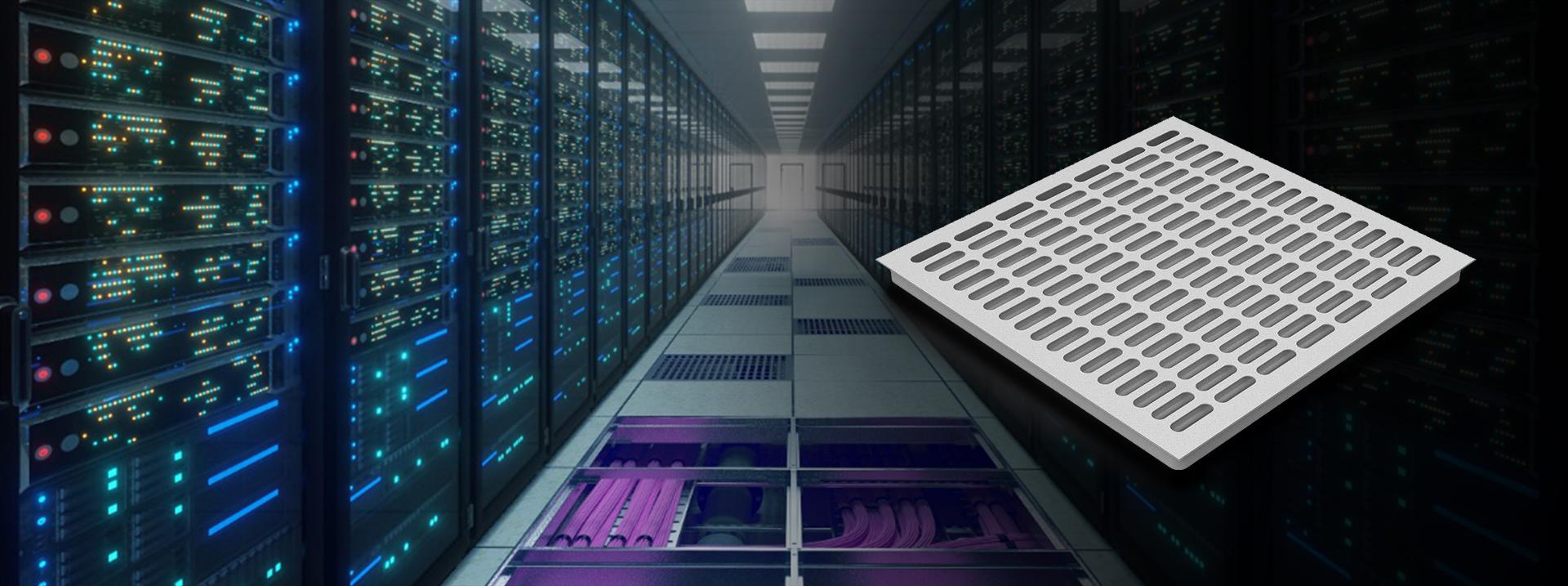

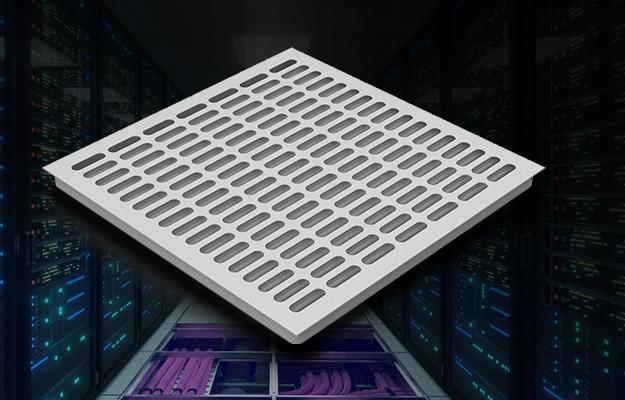

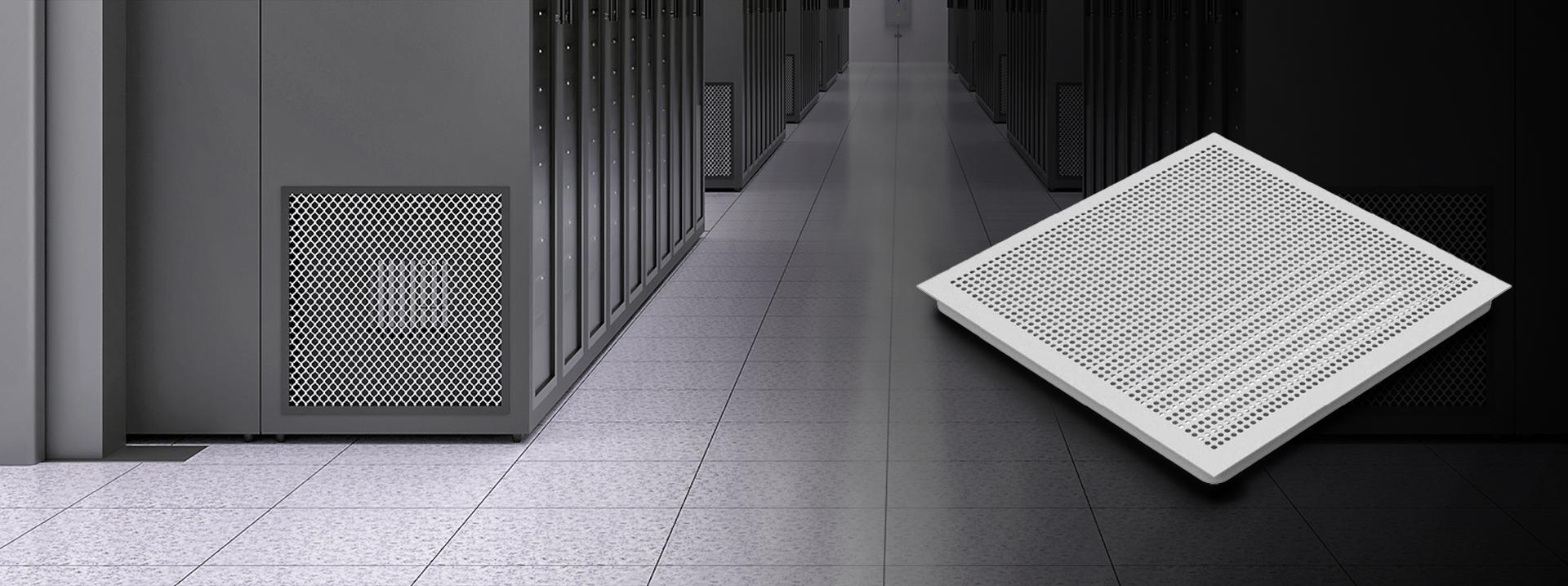

U-flex Standard Air Flow Grills are manufactured from mild steel with a perforated top. It has a vertical steel plate grid core to avoid turbulence & minimize pressure drop. A vertical mesh supports the airflow grill at regular intervals to ensure flatness and high load carrying capacity. It is compatible with adjacent raised access floor system.

DIMENSIONS: 600MM X 600MM, 600 X 800

TOP: Bare / High-Pressure Laminate





benefits

Data Center Accessories Unitile

High load carrying capacity

Data Center Accessories Unitile

Cost effective

Data Center Accessories Unitile

Equal airflow performance

Data Center Accessories Unitile

Enhanced airflow volume management

Data Center Accessories Unitile

Uniform air balance

Data Center Accessories Unitile

Adjustable volume damper option

Technical Specification
  • Standard Air Flow Grills
  • 27%
  • 46%
  • Size of the Active Grill
  • 600 x 600 mm
  • 600 x 600 mm
  • Min. Permissible false floor height
  • 450 mm
  • 450 mm
  • CFM
  • 350 - 500
  • 350 - 500
  • Concentrated Load
  • 540 kgs
  • 540 kgs
  • Uniformly Distributed load
  • 1620 kgs/Sq.mt
  • 1620 kgs/Sq.mt
  • Air Flow Direction
  • STD
  • STD
* Contact us for detailed specifiations of the product design.
