U-Flex Extreme
The U-Flex Extreme Structural Ceiling System is an engineered overhead infrastructure solution designed to support containment barriers, partitions, and ceiling-suspended service equipment in data centers and other critical applications. Built for strength, flexibility, and rapid installation, it ensures easy access for inspection, maintenance, and future upgrades while delivering robust load performance and certified safety.
| Maximum Safe Working Point Load* | 4.90 kN / 500 kg |
| Maximum Safe Uniform Load* | 6.81 kN/m² / 695 kg/m² |
| Required Torque for Top Slot | 7 Nm |
| Factor of Safety | 2 |

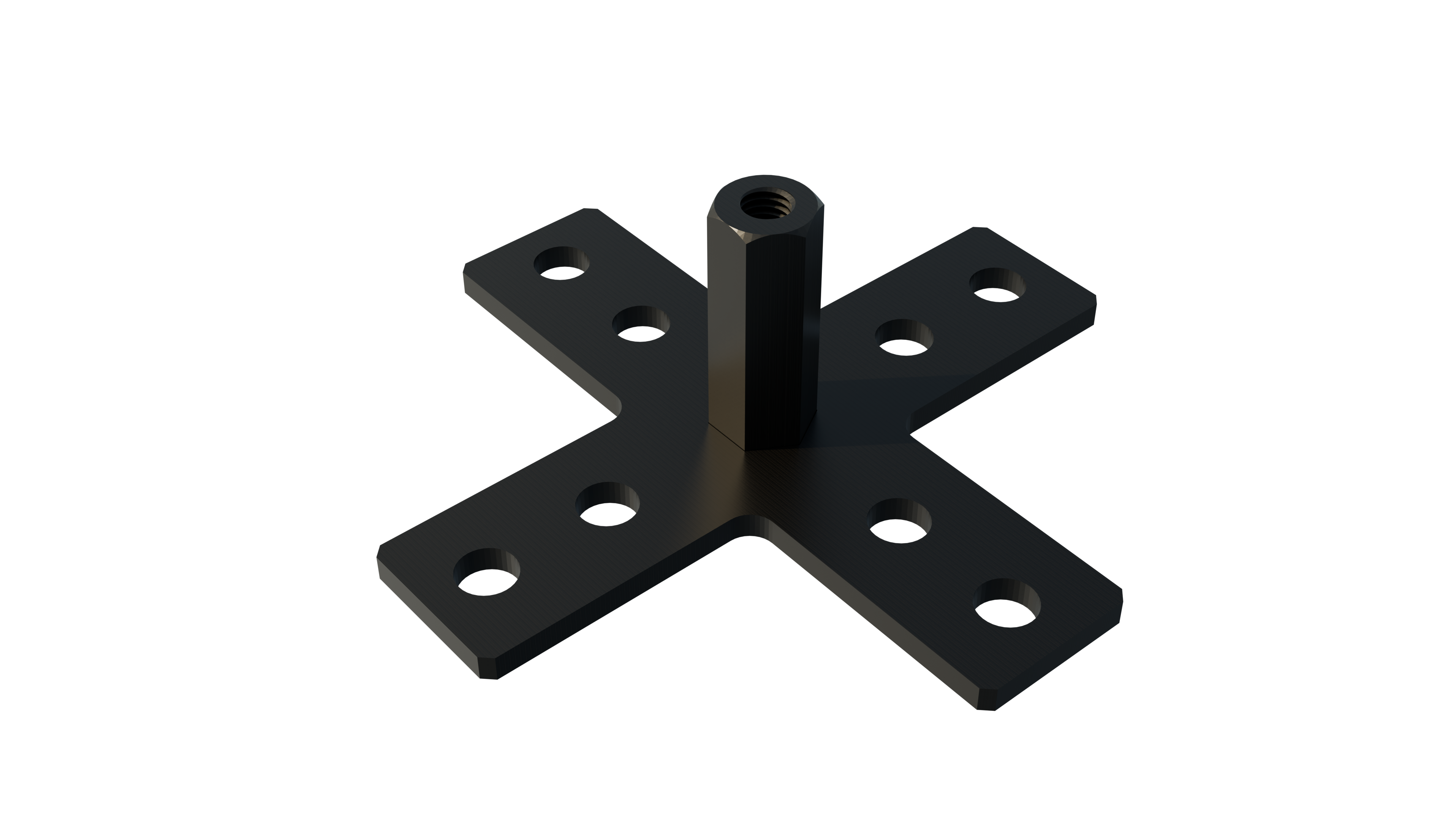

| Standardized Connectors | Yes (Strut channel nut compatible) |
FEATURES
High Load Capacity: Supports up to 500 kg point load and 695 kg/m² uniform load.

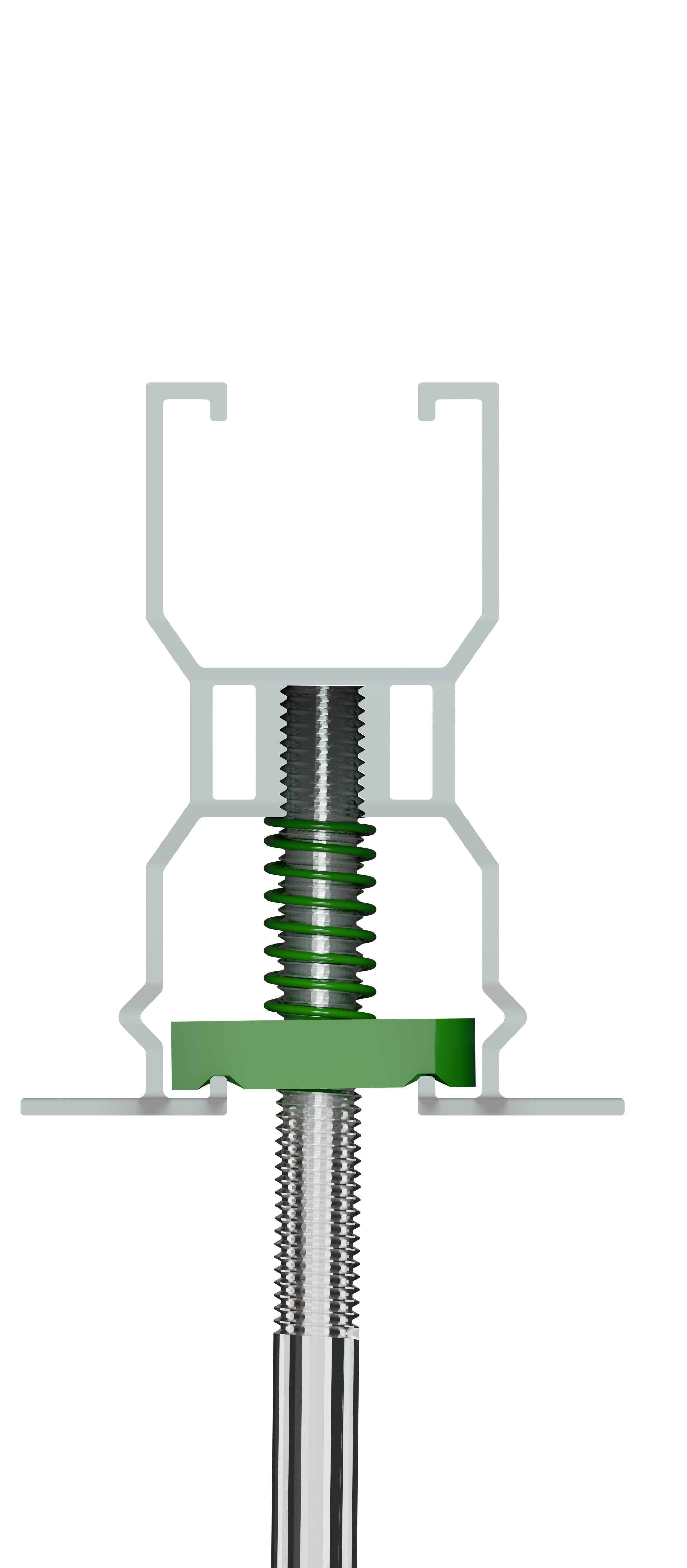

Universal Compatibility: Continuous C‑slot design supports LV/HV trays, lighting, CCTV, and other overhead services.
Flexibility: Removable ceiling panels allow seamless inspection and layout changes without disturbing services.

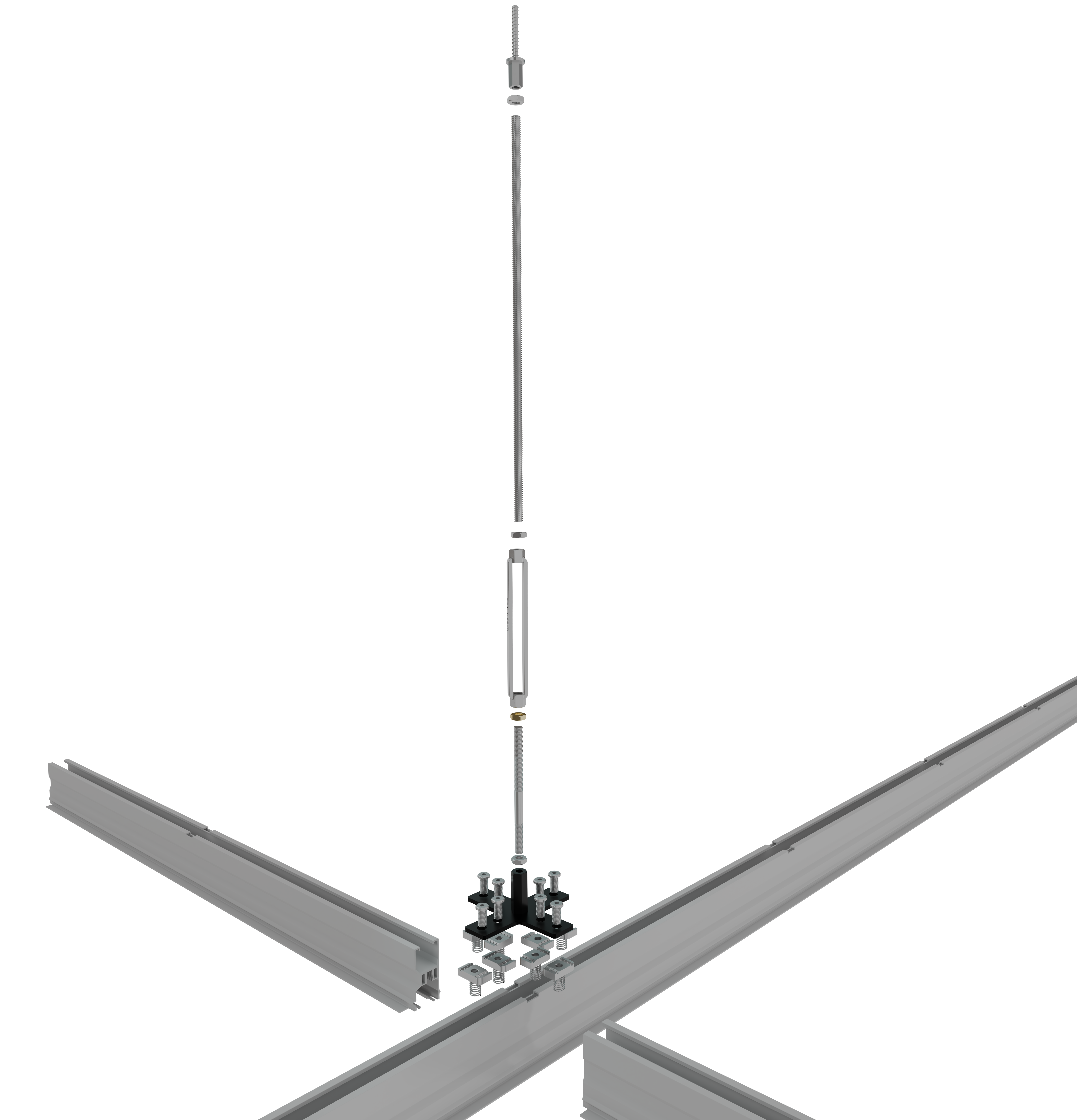

Precision Design: CNC‑milled ends and notched runners ensure precise alignment and enhanced performance.

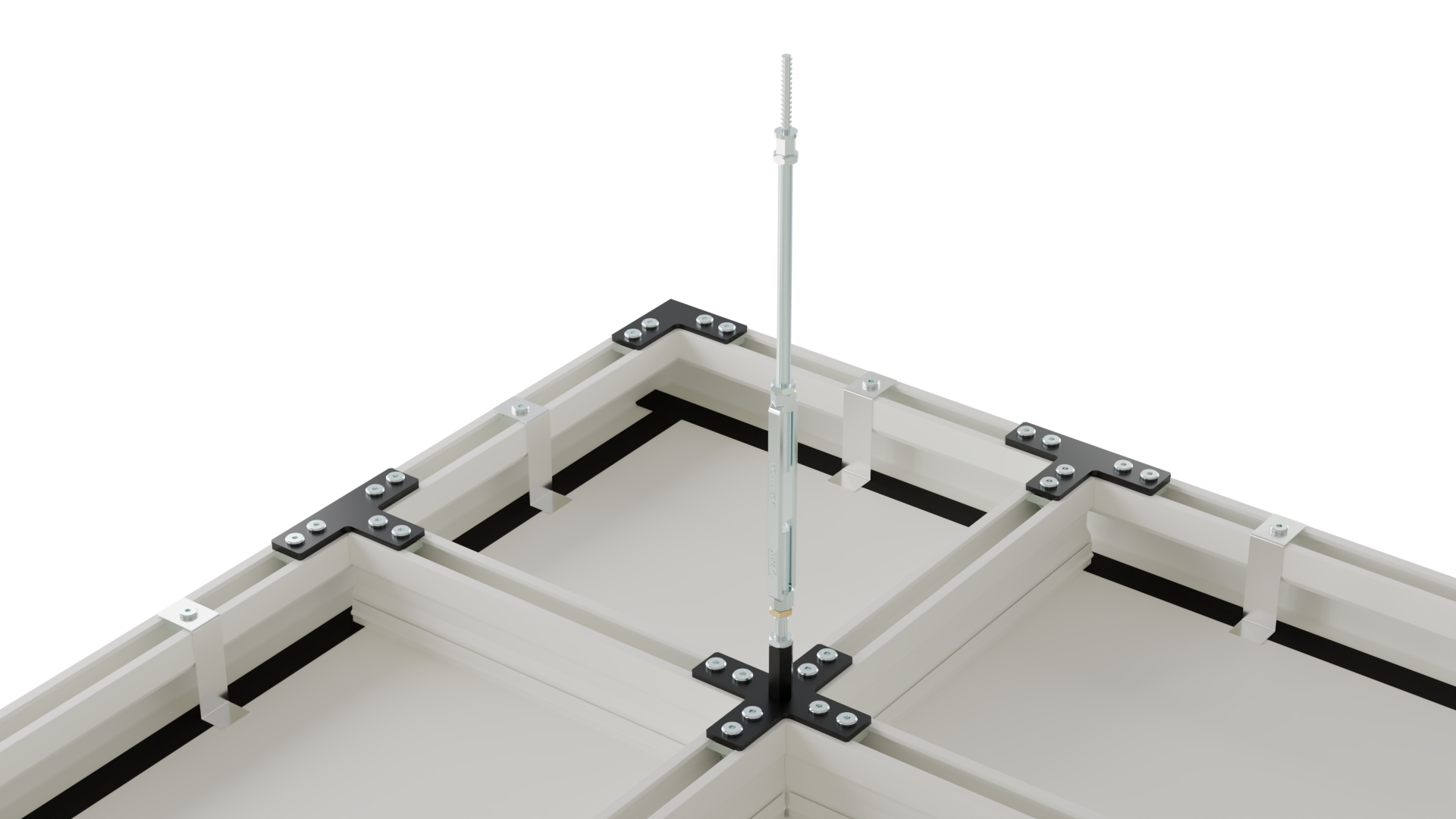

Multiple Grid Options: Available in 600×600, 600×1200, and 1200×1200 mm layouts with customization.
Durable Finishes: Offered in Silver Anodized Matt, Black Anodized, and RAL 9003 finishes.

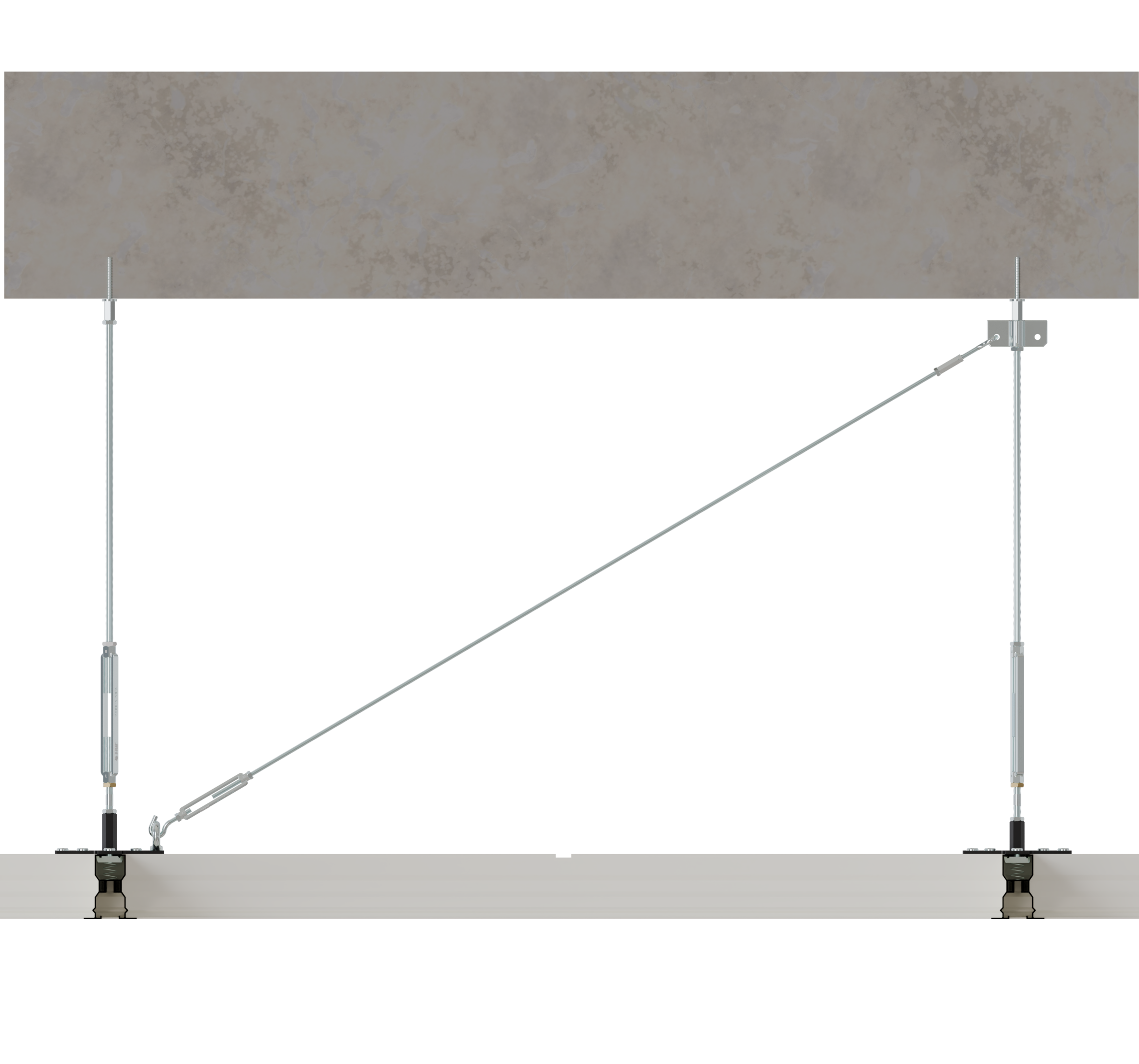

Seismic‑Ready Design: Specialized components minimize risks in seismic conditions.
Sustainable Excellence: EPD‑certified system supporting green building standards.
U-Flex Extreme
| U-Flex Extreme | |
|---|---|
| Parameters | Values |
| Maximum safe working point load* | 4.90 kN / 500 kg |
| Maximum safe uniform load* | 6.81 kN/m² / 695 kg/m² (1200 × 600 Panel) |
| Required torque for top slot | 7 Nm |
| Factor of Safety | 2 |
| Top & Bottom slot | Standardized strut channel nut connectors |
| Technical Specification Doc | Download |
*All values are indicative — contact us for detailed technical documentation.
FINISH OPTIONS
Natural Anodized
Black Anodized
White Partial
